Our best selling Mini CNC Router

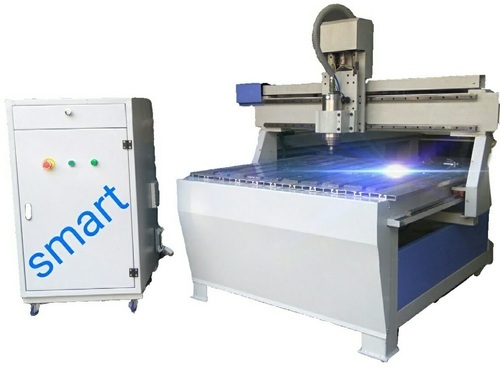

Mini CNC Router
Being one of the best organizations, we are highly engaged in offering a wide range of Mini CNC Machine. The provided machine is widely demanded among our clients for its long service life and less maintenance features.
The machines offered by us are manufactured under the direction of our skilful team of professionals from the finest quality components and the latest technology. Offered machines are highly applauded due to their robust design, high efficiency, reliable usage, smooth functioning, low maintenance, long working life and excellent performance. To meet the varied needs of the clients, we provide these machines in diverse specifications to choose from.
Features
- Integrally cast lathe bed, robust and without distortion
- Excellent design and well-chosen electric accessories to minimize the failure rate
- High operational fluency
SPECIFICATION | UNIT | Technical Parameter |
---|---|---|
X-Y-Z Axis working area | mm | 900x 900 x 150 |
Drive Motor | 86 kgcm | stepper Motor ( optionl : Servo motor ) Whit Planetary Gearbox |
Operating system | PCI based Controller( optionl : DSP Hand Controller ) | |
X – Y – Z Movement | 20mm | LM guide way & ball screw ( HIWIN Taiwan ) |
spindle | 3 kw Air cooled ( italy ) | |
Colet Type & Size | Er 20 | |
Oil Lubrication System | Standard | |
Working Voltage | AC 415 V / 3 PH ,50 Hz | |
Command code | G Code | |
Maximum Spindle Speed | mm/min | 18,000 |
Resolutions | mm | 0.2 |
Maximum Cutting speed | mm/min | 6,000 |
Working Tabbel | Aluminium Tslot | |
Material Holding | By Clamp | |
cutting material | Mdf , Wood , Wpc, Mdf , Acp , Acrylic, Pvc , |
